MSI GeForce RTX 5060 Ti 8G Ventus 2X OC Plus: The Complete Buyer’s Guide

We present a comprehensive, hands-on style deep dive into MSI’s GeForce RTX™ 5060 Ti 8G Ventus 2X OC Plus. For those interested in the MSI GeForce RTX 5060 Ti price in Pakistan.

This guide provides insights from architecture and real-world use to fitment, thermals, and software tuning, equipping you to choose, install, and get the best from this RTX 50-series mid-range GPU. Best MSI GeForce RTX 5060 Ti Price in Pakistan, Only for PPG Buy & Sell Members. Link Post Here

At-a-Glance Highlights

• Blackwell-based RTX 5060 Ti with DLSS 4 and modern AI features.
• 8GB GDDR7, 128-bit, typical board power around 180W; DisplayPort 2.1b + HDMI 2.1b on partner cards.
• MSI Ventus 2X OC Plus features dual-fan cooling, compact dimensions, and factory overclocks via MSI Center profiles.

Overview & Key Specifications

The MSI GeForce RTX™ 5060 Ti 8G Ventus 2X OC Plus sits in the heart of NVIDIA’s RTX 50-series, delivering mainstream pricing with genuine next-gen features. It leverages NVIDIA’s Blackwell architecture and supports DLSS 4, ray tracing, and AI-enhanced workloads that span both gaming and content creation.

NVIDIA’s 5060-class family is positioned for high-refresh 1080p and comfortable 1440p play, with performance that scales in DLSS 4-enabled titles thanks to frame reconstruction and multi-frame processing.

MSI’s Ventus 2X OC Plus focuses is pragmatic: a short, dual-slot-friendly card with two high-static-pressure fans, a robust heatsink, and subtle styling to disappear neatly into compact or minimalist builds.

The model ships with factory-overclock profiles selectable via MSI Center (Extreme/Gaming/Silent), plus a smartly tuned power target to maintain stability without demanding an oversized power supply. MSI’s listings indicate boost clocks in the ~2.6 GHz range, depending on profile, and memory running at 28 Gbps—a hallmark of GDDR7 on this tier.

Headline specs (typical for 5060 Ti partner cards):

• CUDA Cores: ~4,608
• VRAM: 8GB GDDR7, 128-bit, 28 Gbps
• Total board power: ~180W
• Outputs: Up to 3× DisplayPort 2.1b + 1× HDMI 2.1b
• Bus: PCIe Gen 5
• Max displays: up to 4
  These figures align with NVIDIA’s own positioning and AIB partner specifications for the RTX 5060 Ti class.

Best MSI GeForce RTX 5060 Ti Price in Pakistan, Only for PPG Buy & Sell Members. Link Post Here

Blackwell Architecture, DLSS 4 & AI Accelerators

Under the shroud, the RTX 5060 Ti uses NVIDIA’s Blackwell architecture—an evolution that pushes ray tracing throughput, tensor math for AI, and image reconstruction quality with DLSS 4.

Blackwell’s updated Tensor Cores accelerate mixed-precision math and multi-frame algorithms, enabling the card to synthesize frames and upscale imagery with fewer artifacts and sharper detail.

The practical upshot: this midrange GPU hits higher effective frame rates and smoother frametimes in compatible games than raw raster numbers suggest, especially at high refresh rates or with ray tracing toggled.

DLSS 4 folds in several pillars—super resolution, frame generation, and refined optical flow—so scenes with complex lighting or motion (think dense foliage, particles, or fast camera pans) retain clarity and fluidity. The technique extends the useful lifespan of a mid-tier card by decoupling fluidity from brute-force raster.

Blackwell’s RT Cores further improve BVH traversal and intersection tests, meaning you can keep ray-traced shadows and reflections on at 1080p/1440p without watching your frame counter collapse.

Beyond gaming, the same tensor throughput benefits AI-assisted content tools—from background removal and denoising to speech enhancement. Many workstation apps integrate NVIDIA Studio features, so the 5060 Ti’s AI cores serve real, daily workloads, not just marketing copy.

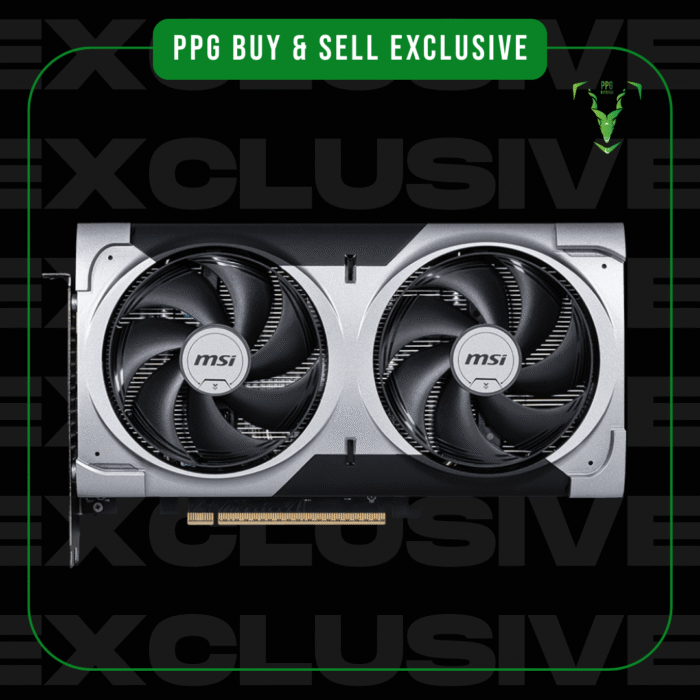

MSI Ventus 2X OC Plus Cooling: Design & Materials

MSI’s Ventus 2X approach prioritizes efficiency per liter: two large fans feed a dense fin stack with multiple heatpipes that draw heat from the GPU and memory modules.

The fan blades’ geometry is tuned for static pressure over a crowded fin array, reducing the need to spin fast. The shroud leaves breathing room on the sides, and a full-length backplate adds rigidity while channeling heat away from hotspots around the memory and VRM.

The result is a cooler that’s quiet at idle (fans typically stop until the GPU warms under load) and subtle under gaming—ideal for living-room PCs or deskside builds where noise matters.

The Ventus family is deliberately understated—no aggressive RGB, no bulky triple-slot overhang—so it fits mATX cases and SFF-friendly ATX enclosures while still clearing front-mounted radiators in many layouts. MSI’s product materials call out dual-fan thermal solutions and profile-based boosts, reinforcing the “plug-and-play” nature of this SKU.

What this means for you: expect temperatures that hover in the safe mid-70s °C in a well-ventilated case with standard fan curves, with room to undervolt for even lower noise. If you stress-test with a ray-traced title and unlocked power target, the cooler remains composed—especially if the case has a clear front intake path.

Clocks, Power, and Efficiency

MSI ships the Ventus 2X OC Plus with factory overclock profiles. Listings show Boost clocks around 2.6 GHz when using MSI Center’s Extreme profile, with Gaming and Silent modes a hair lower to balance acoustics. NVIDIA targets a ~180W board power for the 5060 Ti class, giving partners modest headroom for OC without resorting to overbuilt coolers.

In practice:

• Gaming/Silent: Slightly conservative boosts that keep fan RPMs pleasant and power draw modest—ideal for compact cases or stock PSUs.
• Extreme: Pushes the voltage/frequency curve up just enough to gain a few percent in raster-heavy titles and sustain higher clocks in ray tracing scenes—useful for high-refresh 1080p.

The 5060 Ti’s efficiency story is buoyed by DLSS 4. Where prior generations relied on brute raster to chase 144+ FPS, Blackwell’s frame-generation stack lets this GPU exceed traditional expectations, particularly in visually dense titles. Tuning power targets (-10% to -20%) frequently nets a near-silent profile with minimal performance loss. If your PSU budget is tight or your case is thermally constrained, this flexibility matters.

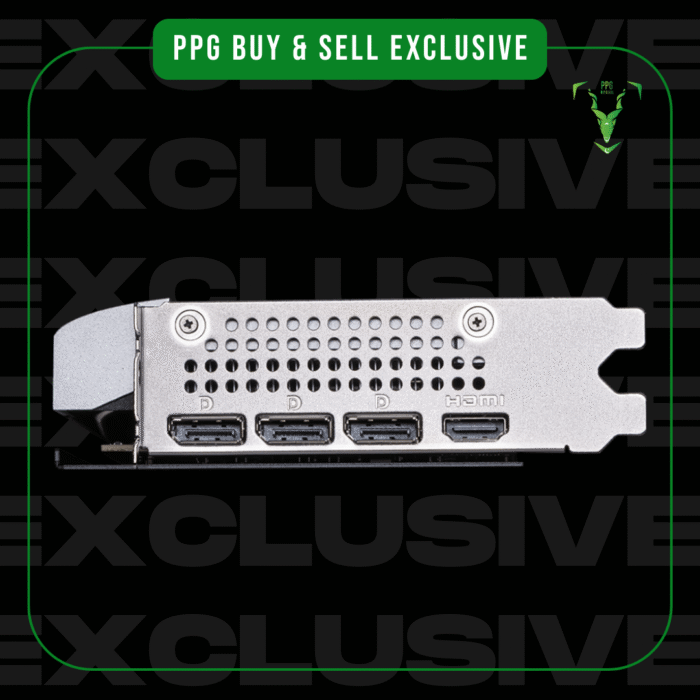

Memory, Bandwidth & Display I/O (GDDR7, DP 2.1b, HDMI 2.1b)

A defining spec for the RTX 5060 Ti class is its 8GB of GDDR7 on a 128-bit bus running at 28 Gbps. While 8GB invites debate, the generational jump from GDDR6 to GDDR7 increases per-pin throughput, helping offset the narrow bus with higher effective bandwidth. MSI store pages and partner specs consistently point to 28 Gbps memory data rate on 8GB models.

On the output side, most board partners—including MSI, ASUS, and PNY—equip three DisplayPort 2.1b and one HDMI 2.1b, supporting 8K60 (compressed), high-refresh 1440p/4K, and modern VR headsets. This forward-looking I/O set is a meaningful upgrade for users planning OLED 1440p 240 Hz or 4K 120 Hz displays.

Why it matters:

• GDDR7 @ 28 Gbps keeps 1080p ultra and 1440p high presets responsive, especially when DLSS 4 reduces internal render cost.
• DP 2.1b + HDMI 2.1b ensures your next monitor upgrade won’t be limited by the GPU’s ports or link rate.

Physical Dimensions, Case Fit & PSU Sizing

Compact cards are easier to live with. MSI’s Ventus 2X OC Plus cooler mirrors the dimensions used across its 5060 Ti Ventus family.

MSI’s published specifications for the closely related 16G Ventus 2X OC Plus list ~227 × 127 × 41 mm and ~600 g—figures that reflect the shared shroud and heatsink design, and thus are a useful proxy for the 8G OC Plus’ footprint.

Expect two slots of thickness and standard length that clears most front fans in mATX towers. Maximum display support is 4.

For power, NVIDIA and partners indicate the 5060 Ti at around 180W board power. Pairing with a 550W–650W quality PSU covers typical gaming builds that include a mid-range CPU.

If you plan for aggressive overclocking or a CPU that spikes power (e.g., unrestricted boost on high-core-count models), a 650W unit adds margin. The card is PCIe Gen 5 capable, and vendors reference DisplayPort 2.1b/<strong>HDMI 2.1b, underscoring its modern signaling path.&lt;/p>

Fitment checklist:

• Case supports ~230 mm GPU length and 2 slots.
• Front intake unobstructed by thick radiators; consider top-mounting AIOs.
• PSU with 2× 8-pin (or appropriate adapter) per manufacturer guidance; verify your specific MSI package contents.

Connectivity, Encoders & Multi-Monitor Support

Beyond gaming, the 5060 Ti’s I/O and media blocks define its versatility. Across AIBs, you’ll generally see 3× DP 2.1b + 1× HDMI 2.1b, providing four simultaneous displays and ample bandwidth for high-refresh 1440p/4K panels. This layout simplifies multimonitor productivity, ultra-wide racing setups, or a dual-monitor + VR arrangement.

On the media side, NVIDIA’s 50-series brings upgraded NVENC/NVDEC blocks compared to previous midrange GPUs, enabling efficient AV1 hardware encoding and decoding, which streamers and editors will appreciate.

While encode matrices vary by sub-model, the net effect is cleaner live streams at lower bitrates and faster exports in AV1-aware NLEs. Combined with NVIDIA Broadcast features (noise removal, background blur), this turns an affordable gaming card into a capable creator engine.

For creators juggling multi-display workflows, G-SYNC support and high refresh keep the desktop snappy even under load, while Studio drivers prioritize stability and app certifications.

Gaming Experience at 1080p & 1440p

The MSI RTX 5060 Ti Ventus 2X OC Plus targets high-refresh 1080p and smooth 1440p in modern engines. With DLSS 4 engaged, visually demanding titles with ray tracing are far more approachable on a midrange budget. Esports and lighter AAA titles easily saturate 144 Hz or more at 1080p; cinematic AAA games lock to comfortable refresh ranges at 1440p when leveraging upscaling and frame generation.

Ray tracing: The Blackwell RT Core uplift means RT shadows, reflections, and GI are no longer “ultra-luxury” toggles reserved for flagships. We recommend starting with balanced DLSS, RT on, then dialing RT reflections before RT global illumination for the most impactful visuals per millisecond. If a game supports Frame Generation, enable it once your base FPS sits above ~60 for the smoothest result.

Latency: Pair the card with a G-SYNC monitor and enable NVIDIA Reflex in supported titles to keep click-to-photon latency low, especially when using Frame Generation. Reflex counteracts the queuing that can occur when building generated frames.

Creators’ Corner: Studio Drivers, Encodes & Workflows

For creators, the 5060 Ti’s value extends beyond raster performance. With Studio drivers, broadcast and editing tools enjoy validated support, and the NVENC hardware encoder accelerates renders and live streams with AV1—increasing quality at the same bitrate versus H.264. This matters for YouTube, Twitch, and remote collaboration, where upload bandwidth is finite.

Photographers & designers: GPU acceleration in apps like Lightroom Classic (AI denoise) and Photoshop (neural filters) taps Tensor and CUDA cores. The 8GB frame buffer is enough for complex layers and high-res canvases, while DP 2.1b helps drive 4K/6K reference displays at correct refresh.

Video editors: AV1 support enables visually cleaner streams at lower bitrates. For exports, hardware encode shortens turnaround. In multi-app pipelines—After Effects to Premiere, Resolve to Fusion—the card’s VRAM and encoder can comfortably push 1080p and 1440p timelines with effects, with 4K feasible depending on node complexity and cache strategy.

3D & AI tools: Viewport performance in DCC apps benefits from the CUDA core count, and the Tensor cores support on-device upscalers, denoisers, and generative tools that speed iteration.

Installation & First-Boot Checklist

A clean installation prevents headaches. Use this step-by-step, then cross-check with your motherboard manual and MSI guidance.

1. Power down & prep
   • Update the motherboard BIOS if it’s been a while, especially for PCIe 5.0 support.
   • Uninstall old drivers (use DDU only when switching vendors).
   • Ground yourself to avoid ESD.
2. Seat the card
   • Choose the top x16 slot.
   • Support the card while tightening screws; avoid PCB flex.
   • Connect recommended power leads per MSI’s manual (check your box for adapters if required).
3. Cable the displays
   • Prefer DisplayPort 2.1b for high-refresh 1440p/4K; use HDMI 2.1b for TVs/AVR passthrough.
4. Boot & drivers
   • Install GeForce driver (Game Ready or Studio for creator workflows).
   • Install MSI Center for profiles, LED control (if applicable), and monitoring.
5. Game & app settings
   • Enable DLSS 4, Reflex, and Frame Generation where supported.
   • In MSI Center, test Gaming vs Silent to match your noise tolerance.

MSI Center: Profiles, Monitoring & Quality-of-Life Tools

MSI Center centralizes overclock profiles, fan curves, and basic telemetry. For the Ventus 2X OC Plus, it exposes Extreme, Gaming, and Silent presets with corresponding boost targets.

The Hardware Monitoring module tracks clock, temperature, power draw, and fan RPM, letting you validate whether your case airflow is adequate. MSI’s Frozr AI Cooling-style features (availability varies by board) can sync system fans to GPU thermals, reducing noise when the card is cool and ramping front intakes when it heats up.

Practical tips:

• If you value silence, start in Silent and cap FPS in the NVIDIA Control Panel to your monitor’s refresh (or a touch under).
• For competitive play, use Extreme, then set per-game Max Frame Rate and Reflex.
• Log a gaming session and check for thermal plateaus; if core temps exceed your comfort, revisit case fan placement.

Overclocking, Undervolting & Fan Curves

The 5060 Ti’s silicon headroom varies, but a +100 to +200 MHz effective boost is typical for well-cooled samples, while undervolting often yields the best noise-normalized performance. Use MSI Center or third-party tools to edit the voltage-frequency (V/F) curve:

• Undervolt recipe: Find the frequency you can sustain under load (e.g., 2.65 GHz). Set a point on the V/F curve to ~0.95–1.00 V at that frequency, and flatten the curve above it. Test stability with your most demanding game or a long ray tracing pass.
• OC recipe: Increment core clock in +15–+30 MHz steps and memory in +50–+100 MHz (effective) steps; verify no artifacting or driver resets. Watch power draw and temps; if fans become intrusive, step back.

Fan curves: The Ventus cooler is happiest keeping the core in the mid-70s °C under load. A gentle ramp to ~60% duty by 75 °C preserves acoustics while avoiding thermal soak.

Thermals, Acoustics & Airflow Optimization

A GPU is only as quiet as the case allows. The Ventus 2X OC Plus’ dual fans are tuned for pressure; give them cool intake air and they’ll maintain low RPMs. We recommend:

• Front-to-back airflow with two 140 mm intakes unobstructed by solid front panels.
• If you must mount a thick 240/280 mm AIO in front, ensure the GPU has direct side intake or perforated panels.
• Keep cable clutter away from the GPU’s intake path and consider magnetic filters with low mesh density.

When you undervolt, you typically cut 10–20 W off peak draw, yielding a 2–4 °C drop and reducing fan noise from a broad “whoosh” to a near-silent hum. If your case supports a bottom intake, orient a quiet 120/140 mm fan to feed the GPU directly.

Value Analysis vs. Alternatives

The RTX 5060 Ti launched with 8GB and 16GB variants at mainstream price points and later settled into real-world street pricing that varies by region and partner cooler.

NVIDIA’s announcement pegged the 8GB 5060 Ti as the initial Ti SKU, followed by a 16GB option; specs highlight 4,608 CUDA cores, 128-bit GDDR7, ~2.57 GHz boost targets, and ~180W power—placing it squarely in the midrange with modern I/O and DLSS 4.

Against last-gen cards (e.g., RTX 4060 Ti), the 5060 Ti layers on DLSS 4, higher memory speed via GDDR7, and DP 2.1b, improving longevity and monitor compatibility. Versus same-gen rivals, partner pricing often determines value, but MSI’s Ventus 2X tends to be cost-optimized without sacrificing critical thermals.

When to consider 16GB:

• Heavy texture mods, 4K asset packs, and large creative projects.
• If you keep GPUs for many years, the extra VRAM can protect against edge cases. Otherwise, DLSS 4 mitigates memory pressure in many titles by lowering internal render resolution while retaining visual fidelity.

Who Should Buy This Card (and Who Shouldn’t)

Buy if you want:

• A modern, efficient mid-range GPU for 1080p high-refresh or 1440p high with DLSS 4.
• Quiet, compact dual-fan design that fits mainstream cases.
• DP 2.1b/HDMI 2.1b for next-gen displays and a path to AV1 workflows.

Consider other options if you need:

• 16GB VRAM for aggressive 4K textures or professional datasets.
• Triple-fan thermals for heavy overclocking and boosted power targets.
• Absolute top-end ray-tracing performance at 4K without DLSS.

Quick Reference: MSI GeForce RTX 5060 Ti Ventus 2X OC Plus Specs

• GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell) — DLSS 4, RT/Tensor cores.
• CUDA Cores: ~4,608 (Ti class).
• Boost (profiles): ~2.6 GHz class (Extreme/Gaming/Silent via MSI Center).
• Memory: 8GB GDDR7, 128-bit, 28 Gbps.
• Power: ~180W typical; 550–650W PSU recommended in mainstream builds.
• Outputs: 3× DP 2.1b + 1× HDMI 2.1b; up to 4 displays.
• Dimensions (family reference): ~227 × 127 × 41 mm, ~600 g (Ventus 2X class).
• Bus: PCIe Gen 5.

Conclusion

MSI GeForce RTX 5060 Ti Price in Pakistan: MSI’s GeForce RTX 5060 Ti 8G Ventus 2X OC Plus delivers the right blend of next-gen features, quiet thermals, and compact design. With DLSS 4, GDDR7, and DP 2.1b/HDMI 2.1b, it’s built for today’s 1080p/1440p gaming and tomorrow’s displays. For builders who value efficiency, low noise, and modern I/O without overspending, this card lands exactly where it should.

FAQs

1) Does the MSI RTX 5060 Ti 8G Ventus 2X OC Plus support DLSS 4 and Frame Generation?
Yes. The RTX 5060 family is powered by Blackwell with DLSS 4, including Frame Generation in supported titles, improving effective frame rates and smoothness.

2) What display outputs and maximum monitors are supported?
Most 5060 Ti partner cards—including MSI Ventus—offer 3× DisplayPort 2.1b and 1× HDMI 2.1b, driving up to four displays and enabling high-refresh 1440p/4K setups.

3) How much power does the RTX 5060 Ti draw, and what PSU is recommended?
The 5060 Ti’s typical board power is around 180W. A quality 550–650W PSU is appropriate for most gaming PCs with this GPU.

4) Is 8GB of GDDR7 enough for modern games at 1440p?
Yes for most titles—especially with DLSS 4—though heavy texture mods or future AAA games may favor 16GB. The jump to GDDR7 @ 28 Gbps helps sustain performance despite the 128-bit bus.

5) Will the card fit in compact cases?
The Ventus 2X cooler is compact by modern standards. MSI lists similar models at around 227 × 127 × 41 mm, making it suitable for most mATX and many SFF-friendly ATX cases; always check your specific case’s GPU clearance.
